Bowman Bearing Selector

The Bowman Bearing Selector

The Bowman Bearing Selector has been developed to assist you in selecting the correct bearing for your project. This bearing selector reduces the uncertainty when selecting bushes and you can rest assured that whether you are in the design process or replacing a bearing in an existing application that you have selected the right one. The Bowman Bearing Selector will search our entire product range and select the bearing that corresponds to a set of parameters that you enter into it.

If you already know which bearing you need, you can use the bearing selector to review the technical information on that particular bearing. The bearing selector will show you the tolerances, load ratings, maximum speed, material information and much more.

How to use the Bowman Bearing Selector

  1. Enter your application parameters
  2. Click on one of the suggested bearings that meets your criteria to view the datasheet
  3. Give us a call on 01235 462500 or email us on sales@bowman.co.uk to receive your order within 24 hours!

Step One – Find a bearing

Select Product

Measurements

mm
mm
mm

Speed and Load

rpm
kg

Step Two – Selected Bearing

Washer

BowMet®

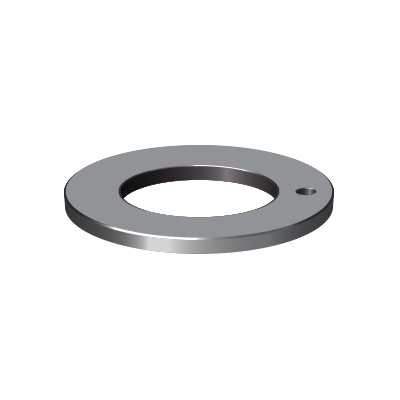

Metric BowMet® Washer

Part number: BMT 20 36 015

Details

Inner Diameter 20
Outer Diameter 36
Thickness 15
Surface Style Smooth

Material Specification

Structure Toughmet ® spinodal bronze with optional lubrication holes/indentations
Max PV – Dry (N/mm² x m/s) 0.6
Max PV – Oiled (N/mm² x m/s) 9.6
Max Static load (N/mm²) 820
Max Dynamic load (N/mm²) 340
Max Sliding speed – Dry (m/s) 3
Max Sliding speed – With Oil (m/s) 10
Operating temperature (°C) -250 to 300
Thermal Conductivity (W/mk) 38
Coefficient of thermal expansion 16.4 x 10-6/°C
Coefficient of friction – Dry 0.25
Coefficient of friction – With Oil 0.04
Recommended shaft finish (Ra) 0.4 max (N5)
Recommended shaft hardness (HRC) 60
Hardness (HRC) 30 min
Ultimate Tensile strength (N/mm²) 860
Yield strength (N/mm²) 725
Elongation (%) 10
Elastic modulus (N/mm²) 144000

Tolerances & Fittings (Metric)

Min Max Tolerance
Inside Diameter 20.000 20.250
Outside Diameter 35.750 36.000
Thickness Tolerance 14.950 15.000
Hole P.C.D 30.000
